How Braided Fishing Line Is Made: Step-by-Step Explanation
Braided fishing line is known for its high strength-to-diameter ratio, minimal stretch, and exceptional sensitivity. These performance characteristics come from its unique construction, which involves braiding multiple strands of ultra-strong synthetic fibers. Here's a deep dive into the entire manufacturing process:
1. Raw Material Selection: High-Performance Fibers
The process begins with the selection of specialized synthetic fibers, most commonly:
UHMWPE (Ultra-High Molecular Weight Polyethylene)
* Trade names: Spectra® (Honeywell), Dyneema® (DSM)
* Known for being 15 times stronger than steel (by weight), resistant to abrasion, and hydrophobic (doesn’t absorb water).
Some premium lines also use:
* Aramid fibers (e.g., Kevlar) for added heat resistance and durability.
* PE (Polyethylene) for budget-friendly variants, often labeled as “PE braided line.”
2. Fiber Extrusion and Drawing
The base polymer (typically polyethylene) is processed in two key steps:
a. Extrusion
* Pellets of UHMWPE resin are melted under precise heat.
* The molten polymer is extruded through spinnerets, which shape the plastic into ultra-thin filaments (often thinner than a human hair).
b. Drawing
* The newly extruded filaments are drawn (stretched) at high speed to align the polymer molecules.
* This step increases tensile strength and creates a very strong, lightweight filament.
At this point, individual fibers are extremely strong but too thin to use alone. Multiple filaments must be combined to form a usable fishing line.
3. Bundling and Pre-Twisting
The next step involves grouping these filaments into strands:
* Strands: These are groups of filaments that will be braided together. Common configurations are:
* 4-strand (basic, cost-effective)
* 8-strand (smoother, rounder)
* 9-strand, 12-strand, and 16-strand (premium lines with ultra-fine construction)
Each strand may consist of tens to hundreds of tiny filaments.
Some manufacturers apply pre-twisting to the strands, which improves the cohesion and uniformity of the braid during the next stage.
4. Braiding Process
This is the heart of the operation—where the actual "braided line" is formed.

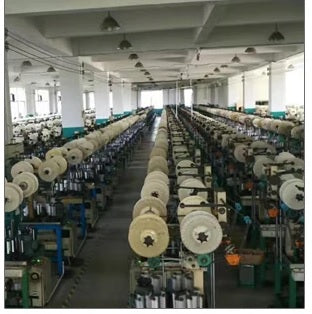

a. Braiding Machines
* Industrial braiding machines, often with 24 to 48 bobbins, are used.
* Each bobbin holds a spool of bundled filament strands.
b. Braid Patterns
The strands are woven in specific patterns, most commonly:
* Diamond braid (interlocking X-pattern)
* Hollow braid (used for splicing)
* S-winding and Z-winding (alternating directions to reduce twist)
As the strands interlace, they form a tight, round braid. The tension and braid angle are carefully controlled to determine the line’s:
* Flexibility
* Abrasion resistance
* Diameter
* Knot strength
A tighter braid generally results in a rounder, smoother line with better casting ability and durability.
5. Coating and Treatment
After braiding, the raw line undergoes various finishing treatments to enhance performance:
a. Coloring
* Pigments or dyes are applied via heat or chemical baths.
* Colors can range from green, yellow, and blue to hi-vis and camo patterns.
* Some lines are color-fade resistant; others are designed to change color by depth or age.
b. Polymer Coating
A thin, smooth polymer or resin coating is applied to:
* Increase abrasion resistance
* Reduce friction in rod guides
* Improve water repellency
* Make handling easier
Premium lines may receive multiple coatings or a proprietary finish (e.g., PowerPro’s Enhanced Body Technology or Sufix’s GORE Performance Fibers).
6. Heat Setting (Optional)
Some manufacturers apply controlled heat to further tighten and stabilize the braid.
This process:
* Locks the braid into a fixed shape
* Reduces fraying
* Improves roundness and consistency
* Makes the line stiffer or smoother, depending on design
Heat setting must be done carefully to avoid damaging the delicate fibers.
7. Spooling and Packaging
Once the braided line passes inspection, it’s spooled onto retail-size or bulk-size spools.
a. Spooling Machines
* Maintain constant tension during winding to prevent inconsistencies.
* Lines are wound in layers to reduce tangles and kinks.
b. Packaging
Final products are labeled with key specs:
* Pound test (e.g., 10 lb, 30 lb, 100 lb)
* Diameter (inches or mm)
* Strand count (e.g., 8X, 16X)
* Color and length (e.g., 150 yds, 500 m)
Some high-end lines come vacuum-sealed or with UV-protective packaging to extend shelf life.
Quality Control and Testing
Before going to market, braided lines undergo rigorous testing, including:
* Tensile strength (actual breaking strength)
* Knot strength (holds under load)
* Abrasion resistance (against rough surfaces)
* Line diameter (consistency)
* Color fastness (resistance to fading)
* Water absorption (should be minimal)
Only lines that meet or exceed the manufacturer’s standards are approved for sale.
Why Strand Count Matters
The number of strands in braided fishing line affects performance:
| Strand Count | Characteristics | Ideal For |
| --------------- | ----------------------------------------------------------- | ------------------- |
| 4-strand | Rough texture, high abrasion resistance | Heavy cover, structure fishing |
| 8-strand | Smoother, better casting, quieter | Inshore, open water, finesse |
| 9–16 strand | Ultra-smooth, tight roundness, premium performance | Offshore, casting distance, reduced noise |
Higher strand counts usually mean:
* Rounder profile (better line stacking on reel)
* Less guide noise
* Higher cost
Conclusion
Braided fishing line is a technological marvel born from high-performance fibers and precise engineering. From the moment UHMWPE is extruded into microscopic filaments to the final step of braiding, coating, and packaging, each stage is designed to produce line that’s thinner, stronger, and more sensitive than traditional monofilament or fluorocarbon.
Whether you're flipping jigs in heavy vegetation, launching topwater lures offshore, or vertical jigging deep wrecks, braided line delivers unmatched strength and feel. Understanding how it’s made helps anglers appreciate the science behind the gear—and make informed choices on the water.
